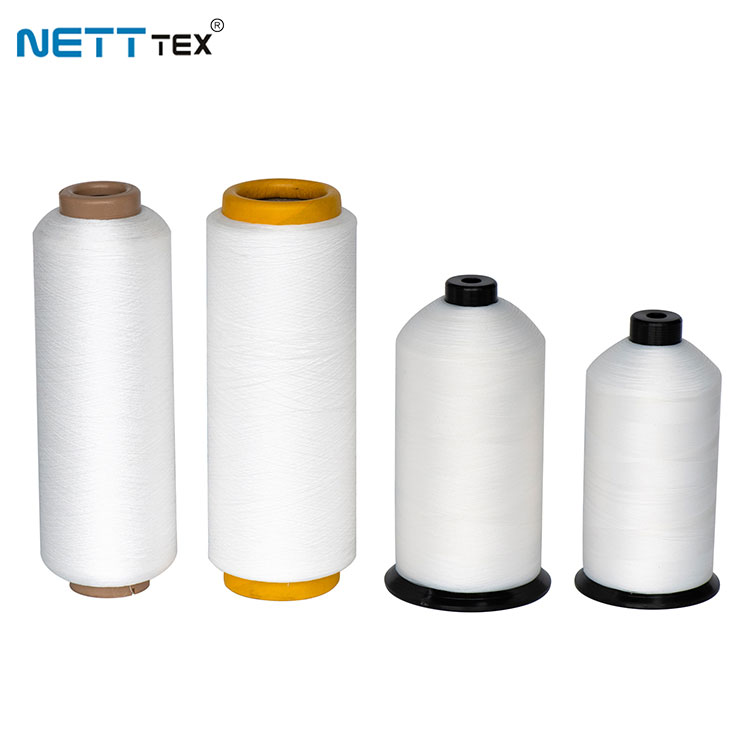

0.10mm 125D PVDF Monofilament Yarn For Knitted, And Braided Textile
  • 0.10mm 125D PVDF Monofilament Yarn For Knitted, And Braided Textile0.10mm 125D PVDF Monofilament Yarn For Knitted, And Braided Textile
  • 0.10mm 125D PVDF Monofilament Yarn For Knitted, And Braided Textile0.10mm 125D PVDF Monofilament Yarn For Knitted, And Braided Textile
  • 0.10mm 125D PVDF Monofilament Yarn For Knitted, And Braided Textile0.10mm 125D PVDF Monofilament Yarn For Knitted, And Braided Textile
  • 0.10mm 125D PVDF Monofilament Yarn For Knitted, And Braided Textile0.10mm 125D PVDF Monofilament Yarn For Knitted, And Braided Textile
  • 0.10mm 125D PVDF Monofilament Yarn For Knitted, And Braided Textile0.10mm 125D PVDF Monofilament Yarn For Knitted, And Braided Textile
  • 0.10mm 125D PVDF Monofilament Yarn For Knitted, And Braided Textile0.10mm 125D PVDF Monofilament Yarn For Knitted, And Braided Textile

0.10mm 125D PVDF Monofilament Yarn For Knitted, And Braided Textile

NETT is a professional leader China PVDF Monofilament, PVDF Multi Filament, PTFE Thread Sewing manufacturer with high quality and reasonable price. Welcome to contact us.

Send Inquiry

Product Description

Introduction



NETT is a professional leader China PVDF Monofilament, PVDF Multi Filament, PTFE Thread Sewing manufacturer with high quality and reasonable price. Welcome to contact us.

Benefits of our Monofilament made of PVDF:
0.10mm 125D PVDF Monofilament Yarn for knitted, woven, and braided textile FLONtex® PVDF Monofilaments are available from 0.06mm through 0.12 mm diameters in various color. It's optimized for manufacturing knitted, woven, and braided textile. Features: 1. Acid, alkali, organic chemical solvents...


Description:


Features of PVDF Monofilament :

PVDF in fluorine plastics has the strongest toughness, low friction coefficient, strong corrosion resistance, aging resistance, good weather resistance, good resistance to ultraviolet radiation and so on.

1. toughness, high mechanical strength, and resistance to wear.

2. outstanding resistance to chemicals

3. resistance to weather, UV light, and nuclear radiation.

4. strong dielectric strength and good heat resistance.



The specifications of FLONtex® PVDF Monofilament produced by us are 0.05mm-0.0.12mm.



Specification:


Type: PVDF Monofilament 50D

NO.

parameter

     Value

Test Temperature

Notes

1

Linear density

55±5dtex

Ambient temperature

50 D

2

Breaking strength

≥1.5N

<20ºC



3

Breaking tenacity

≥0.3cN/dtex

<20ºC



4

Elongation at break

≥10~15%

<20ºC



5

Heat-shrinkage rate

≤3%

1300ºC /2h



6

Yarn

1





7

Average mass per one meter

0.055g/m





8

Color

Natural color





9

Net Weight/spool

50-650g





10

Thread Diameter

0.035







Type: PVDF Monofilament 125D

NO.

parameter

     Value

Test Temperature

Notes

1

Linear density

138±10dtex

Ambient temperature

125D

2

Breaking strength

≥4.2N

<20ºC



3

Breaking tenacity

≥0.30cN/dtex

<20ºC



4

Elongation at break

≥10~15%

<20ºC



5

Heat-shrinkage rate

≤3%

130ºC /2h



6

Yarn

1





7

Average mass per one meter

0.138g/m





8

Color

Natural color





9

Net Weight/spool

50-650g





10

Thread Diameter

0.10







Application of PVDF Monofilament:


Textiles used for fishing, knitting, weaving, filtering, and braiding. Advantage: PVDF exhibits the highest toughness, lowest friction coefficient, robust corrosion resistance, aging resistance, weather resistance, and good radiation resistance in fluorine plastics.



Several reasons to choose PVDF Monofilament by NETT:



1. We can produce various specs including 20D, 30D, 50D 100D etc.

2. We accept customized PVDF Monofilament in various colors.  If you need help determining the best yarn or thread specific to your application, please contact us, we would be happy to help!

3. Our products are packed in our own LOGO cartons, each weighing 18kg. We can pack according to the packing details you provided. To ensure the safety and security of the product during transportation, each carton is individually packaged and secured to a plywood pallet.  This packaging method ensures that the product remains in good condition and reaches its destination intact.

4. NETTtex® has been aggressively concentrating on technological innovation in order to bring new products to market first and achieve profitable outcomes. As of right now, it has 10 utility models, 1 design patent, and 2 authorized invention patents. The company has become a dominant force in the industry thanks to its creative products.


Moreover, NETTtex® has received acknowledgement for its technological contributions. 2018 saw the company classified as a "Small and medium-sized science and technology enterprise in Jiangsu province." 2019 saw the designation of NETTtex® as a "High-tech enterprise." These honors bear witness to the business's unwavering dedication to remaining at the forefront of innovations and technological advancements.


Related products:


PTFE machine woven fabric




PVDF multifilament
