Product Description

Introduction

You can rest assured to buy customized PTFE Monofilament from us. We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time!

Benefits of our Monofilament made of PTFE:
We are a supplier of polytetrafluoroethylene monofilament. Polytetrafluoroethylene monofilament was prepared from polytetrafluoroethylene dispersion by a special mixing process.

The specifications of NETTtex® PTFE Monofilament produced by us are 100D-1000D.

Description：

Material of PTFE Monofilament：

PTFE Monofilament is a kind of thread composed only of a unique substance known as polytetrafluoroethylene resin. This material has many exceptional qualities, such as resistance to hydrolysis, oxidation, corrosion, and high temperatures (-196 to 260°C).

100% PTFE resin from Dupont or Dakin.

Specification：

Type: MF-EF/100D-a

NO.	parameter	Value	Test Temperature	Notes
1	Linear density	110±10dtex	Ambient temperature	100 D
2	Breaking strength	≥3.2N	<20ºC
3	Breaking tenacity	≥2.9cN/dtex	<20ºC
4	Elongation at break	≥10~15%	<20ºC
5	Heat-shrinkage rate	≤3%	1300ºC /2h
6	Yarn	1
7	Average mass per one meter	0.011g/m
8	Color	Natural color
9	Net Weight/spool	50-650g
10	Thread Diameter	0.08

Type: MF-EF/180D-a

NO.	parameter	Value	Test Temperature	Notes
1	Linear density	200±200dtex	Ambient temperature	180D
2	Breaking strength	≥7.6N	<20ºC
3	Breaking tenacity	≥3.8cN/dtex	<20ºC
4	Elongation at break	≥10~15%	<20ºC
5	Heat-shrinkage rate	≤3%	130ºC /2h
6	Yarn	1
7	Average mass per one meter	0.135g/m
8	Color	Natural color
9	Net Weight/spool	50-650g
10	Thread Diameter	0.1

Application of PTFE Monofilament：

Textiles for medical, filtration and weaving purposes.

Advantages:PTFE has the highest toughness in fluorine plastics, the lowest friction coefficient, corrosion resistance, aging resistance, strong weather resistance, and good radiation resistance. It's not easy for bacteria to grow.

Several reasons to choose PTFE Monofilament by NETT：

1. We can produce various specs including 100D, 180D, 500D 1000D etc.

2. We accept customized PTFE Monofilament in various colors. If you need help determining the best yarn or thread specific to your application, please contact us, we would be happy to help!

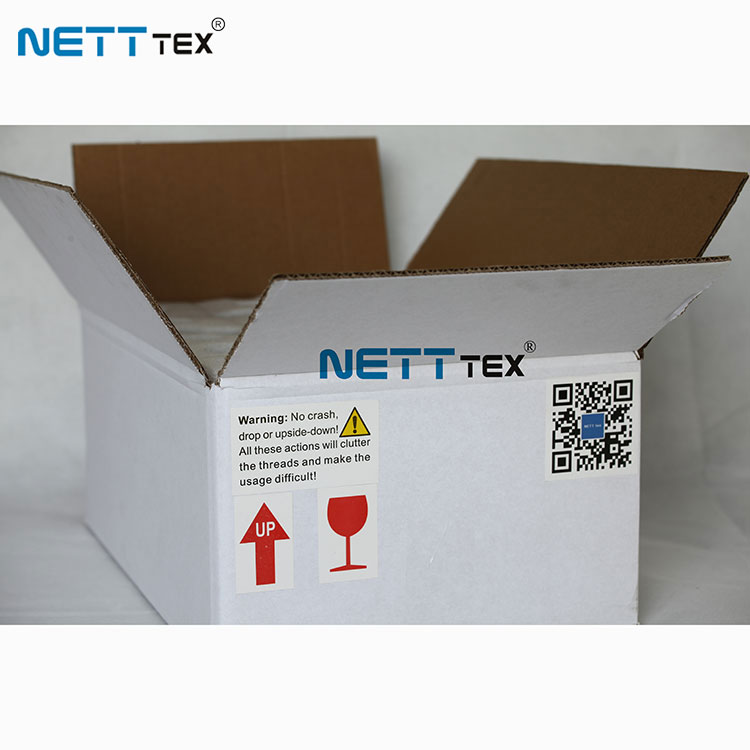

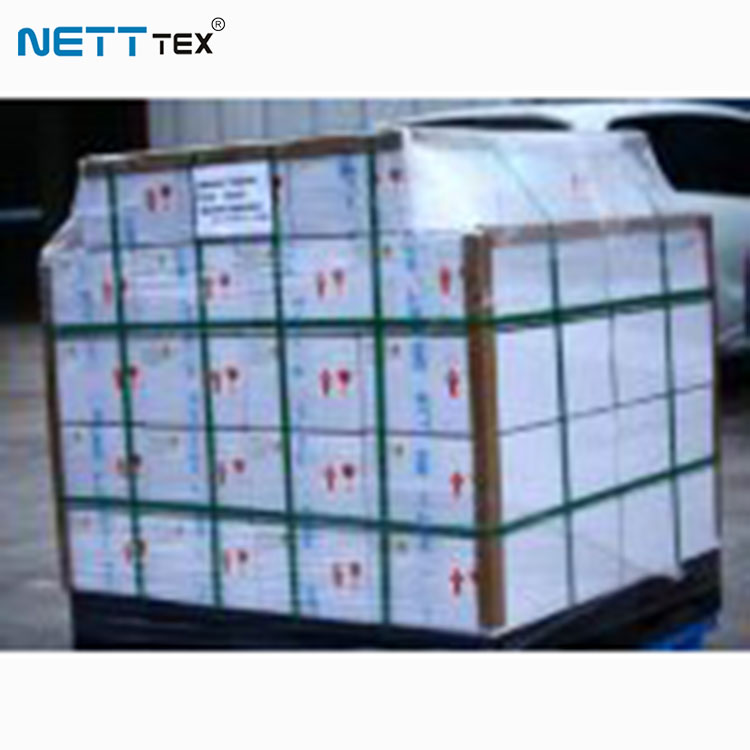

3. Our products are packed in our own LOGO cartons, each weighing 1.5kg. We can pack according to the packing details you provided. To ensure the safety and security of the product during transportation, each carton is individually packaged and secured to a plywood pallet. This packaging method ensures that the product remains in good condition and reaches its destination intact.

4. NETTtex® has been aggressively concentrating on technological innovation in order to bring new products to market first and achieve profitable outcomes. As of right now, it has 10 utility models, 1 design patent, and 2 authorized invention patents. The company has become a dominant force in the industry thanks to its creative products.

Moreover, NETTtex® has received acknowledgement for its technological contributions. 2018 saw the company classified as a "Small and medium-sized science and technology enterprise in Jiangsu province." 2019 saw the designation of NETTtex® as a "High-tech enterprise." These honors bear witness to the business's unwavering dedication to remaining at the forefront of innovations and technological advancements.
